LTM8032IV#PBF
Manufacturer:
Analog Devices
Mfr.Part #:
LTM8032IV#PBF
Datasheet:
Description:

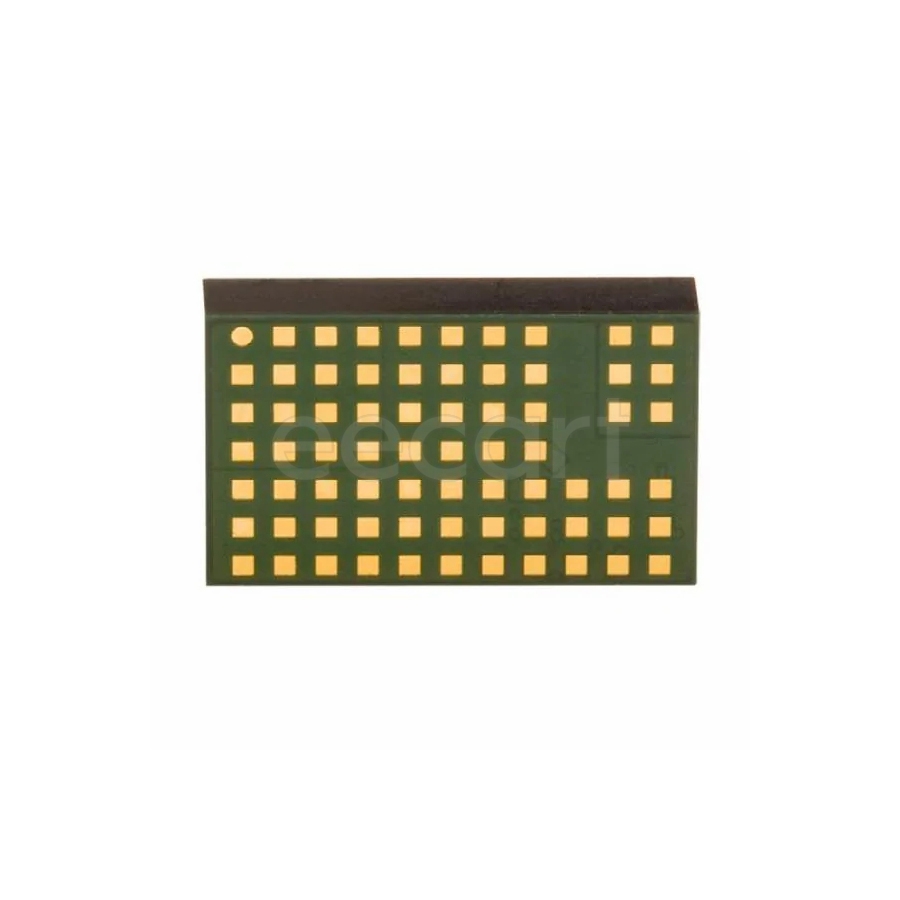

Voltage Regulators - Switching LGA-71 SMD/SMT Buck Adjustable 10 V
| Parameter | Value |
|---|---|
| Length | 14.986 mm |
| Width | 8.89 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 71 |
| Height | 2.794 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Min Input Voltage | 3.6 V |
| Output Current | 2 A |
| Output Voltage | 10 V |
| Output Type | Adjustable |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Max Output Current | 2 A |
| Number of Channels | 1 |
| Operating Supply Current | 25 µA |
| Switching Frequency | 2.4 MHz |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 10 V |
| Min Output Voltage | 800 mV |
| Max Output Voltage | 10 V |
| Schedule B | 8542390000 |
| Topology | Buck |
| Quiescent Current | 88 µA |
| Packaging | Tray |
Stock: 831
Distributors
pcbx
pcbxUnit Price$15.75794
Ext.Price$15.75794
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $15.75794 | $15.75794 |
| 10 | $14.92707 | $149.27070 |
| 25 | $14.60734 | $365.18350 |
| 50 | $14.36993 | $718.49650 |
| 100 | $14.04713 | $1404.71300 |
| 300 | $13.73156 | $4119.46800 |
